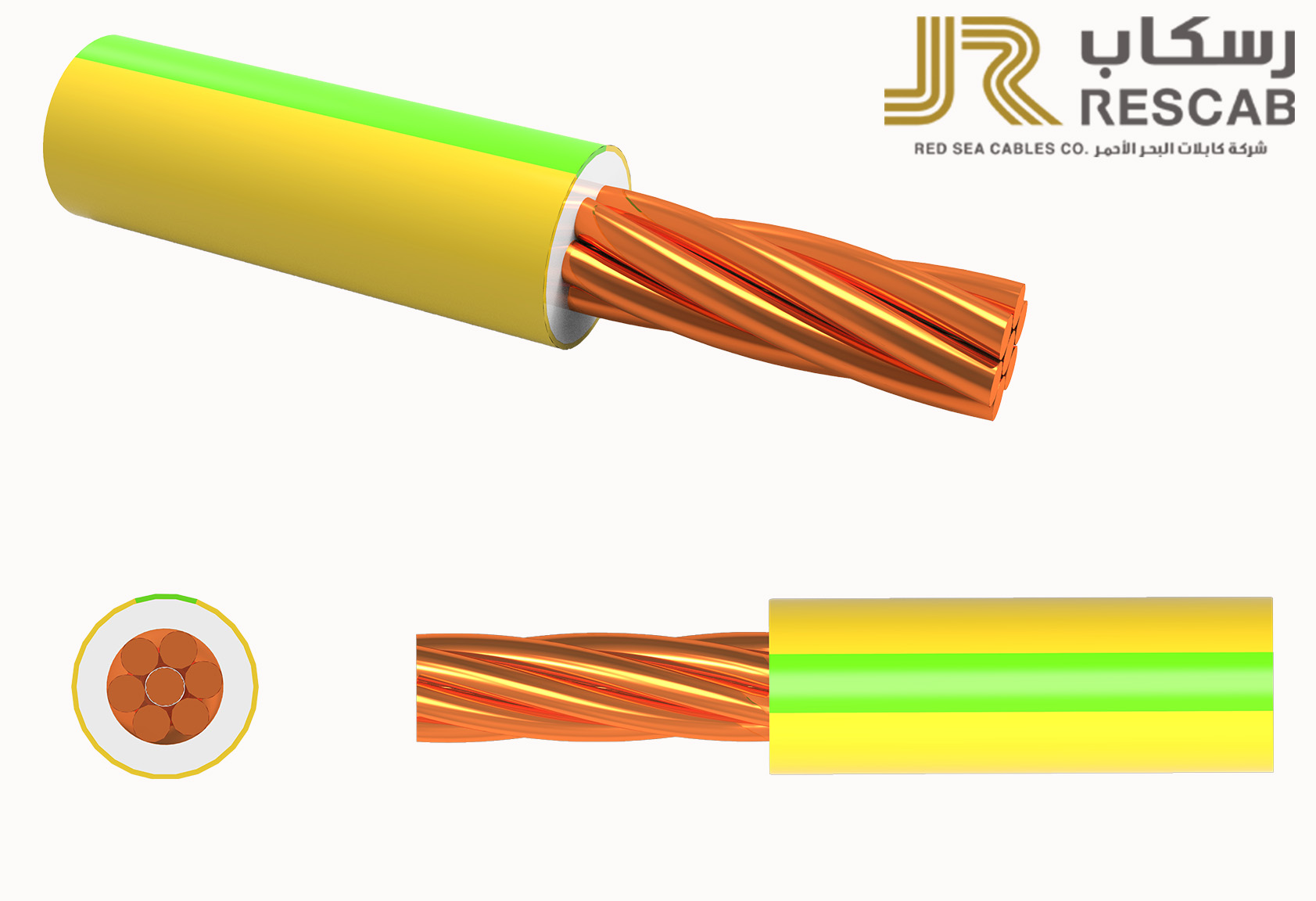

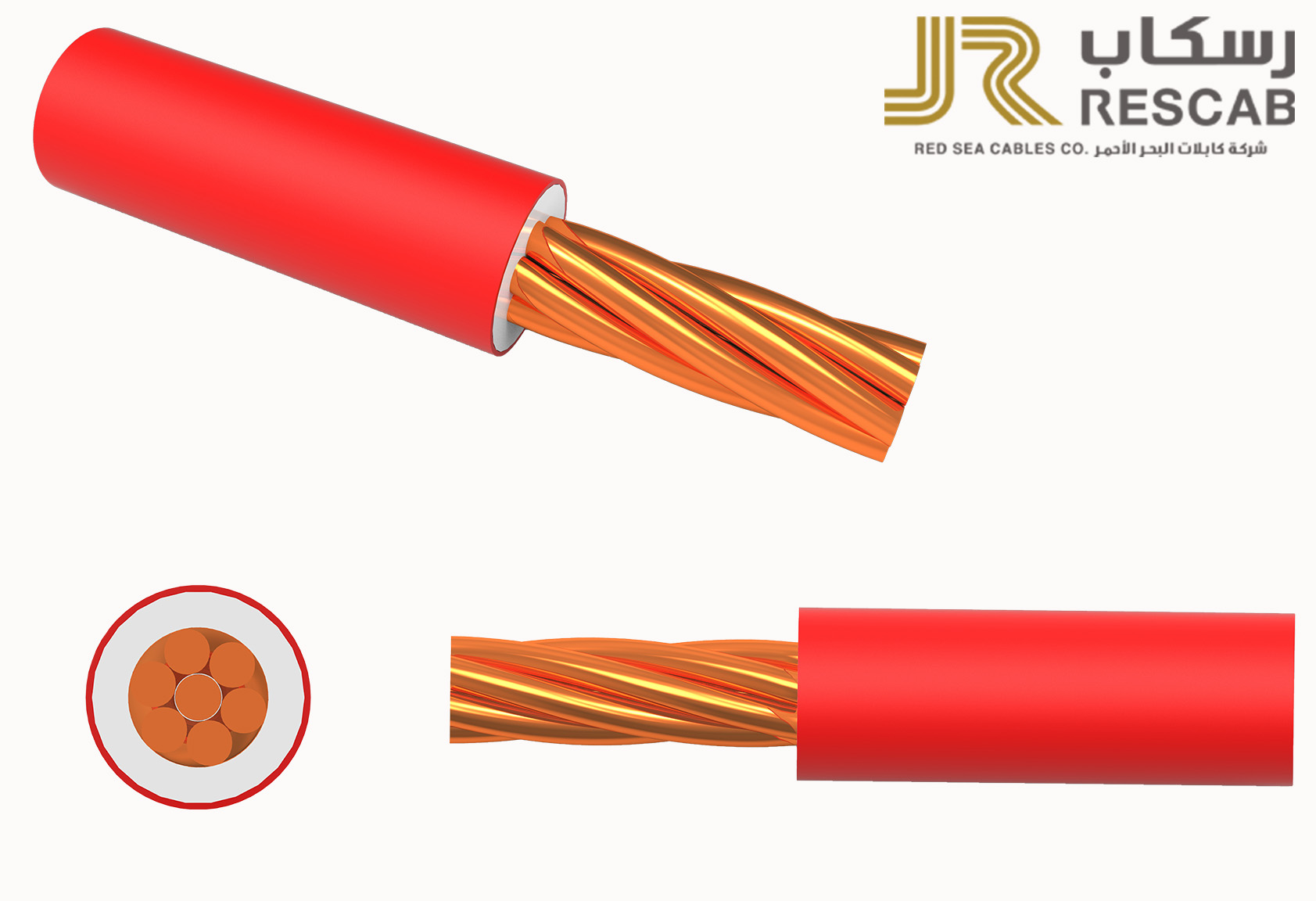

LSHF WIRES (CU/LSHF)

Product Code : LSHF-01

Description

Red Sea Cables Company enjoys a track record in wires, cords and power cables manufactured in KSA and successfully we introduce our new LSHF fire resistant power cables and wires and we will sell under the brand name of “Fire guard”.

RESCAB provides fire resistant cables meeting IEC 60331-21; BS 6387 and BS 7846-F2requirements. We provide these cables with LSHF sheath meeting IEC 61034; IEC 60754 and IEC 60332-3 Cat C and A.

FIRE TESTS many tests are carried out during manufacturing or as final inspections. You can find here the main tests concerning the behavior of cables under fire conditions, it is important to verify all required performances and give the customers the full compliance to the requirements.

RESCAB is proud of its new product passed fire tests at UK labs.

Technical Specifications:

CU/LSHF Single Core - 450/750 Volts - Suitable for Voltages up to 1000 Volts a.c or up to 750 Volts to Earth, d.c. According to BS 50525-3-41.

Conductor:

Soft annealed copper according to BS EN 60228, Class 2 stranded conductor and with Class 5 Flexible conductor Conductivity 100 % IACS.

Insulation:

Polyolefin cross-linked material of Type EI 5 according to EN 50363-5, Insulation rated temperature up to 90oC.

Applications:

This single core cable is used for indoor fixed installations in dry locations, laid in conduits

Colors:

Red, Yellow, Blue, Black, Brown, Green, White, Orange, Grey, Green/Yellow or any other color as per customer requirement.
