Bare Copper soft drawn
We offers an extensive range of Bare Copper Conductors. Stranded bare soft or annealed copper conductors are suitable for direct burial and do not suffer from the inherent corrosion problems that an aluminum conductor would. Copper is almost twice as conductive as aluminum. Copper is easier than aluminum to terminate and join at splices and joints. We use the highest quality Copper material and the latest manufacturing techniques to produce these cables.
Technical Specifications:

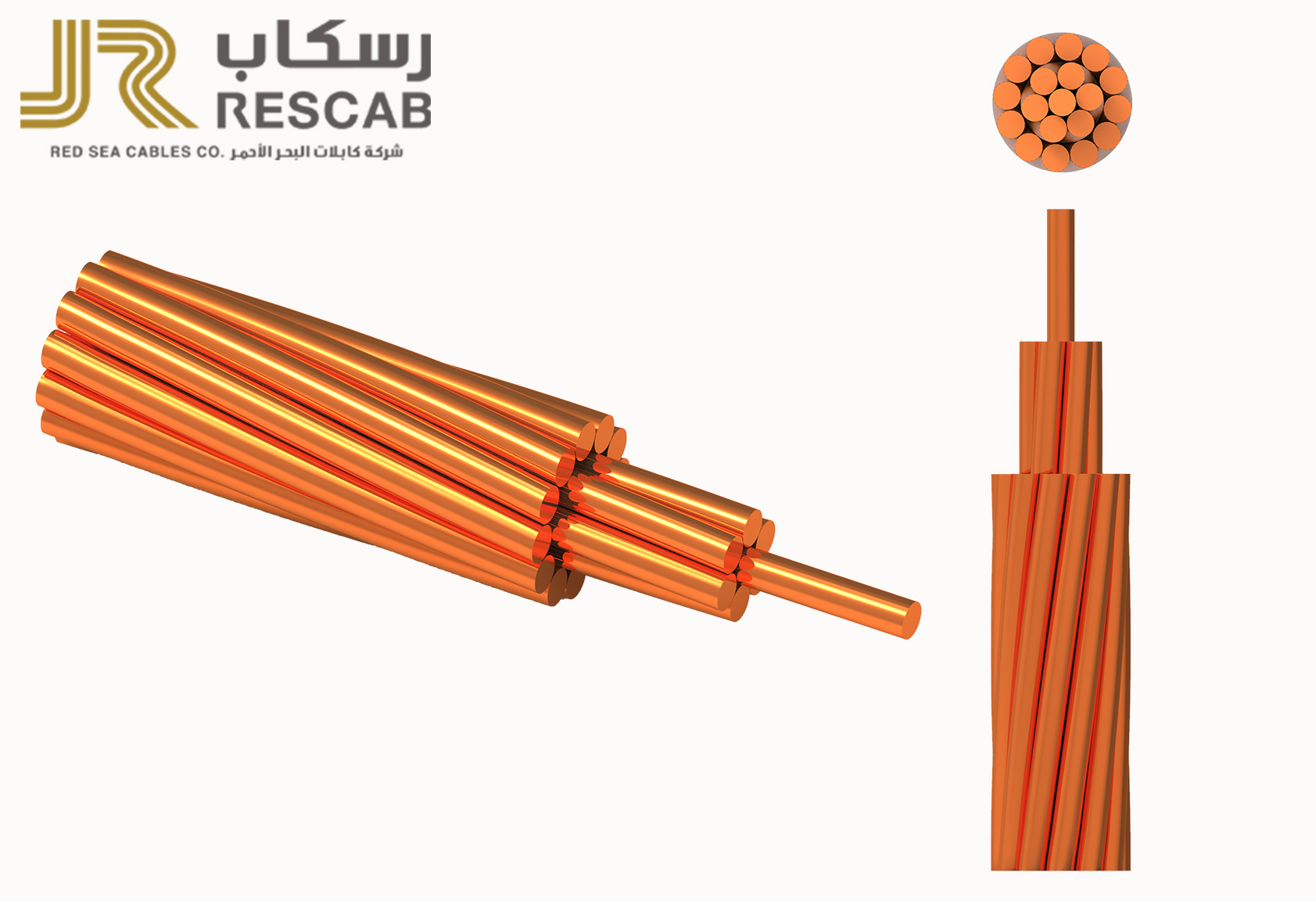

Bare copper conductors are (Compacted or Non-Compacted) concentric-lay-stranded consisting of one or more layers of wire wrapped helically around a straight round central wire. Greater flexibility is afforded by using Class 2 stranding according to IEC 60228.
Standards:
Bare Copper Conductors are manufactured according to Latest updated Standard of IEC 60228 and BS EN 60228 Class 2.
Application:
Stranded Class 2 bare copper wire to BS EN 60228 / IEC 60228 cables are non-insulated and non-sheathed soft drawn copper. Stranded bare soft or annealed copper conductors are recommended for use as neutrals, in circuit ground connections as well as machinery and equipment grounding systems. Soft copper may be used for transformer drop leads or other non-tension hook-up jumpers.
Special Requirements:
- Round Compacted.
- Round Un compacted.
