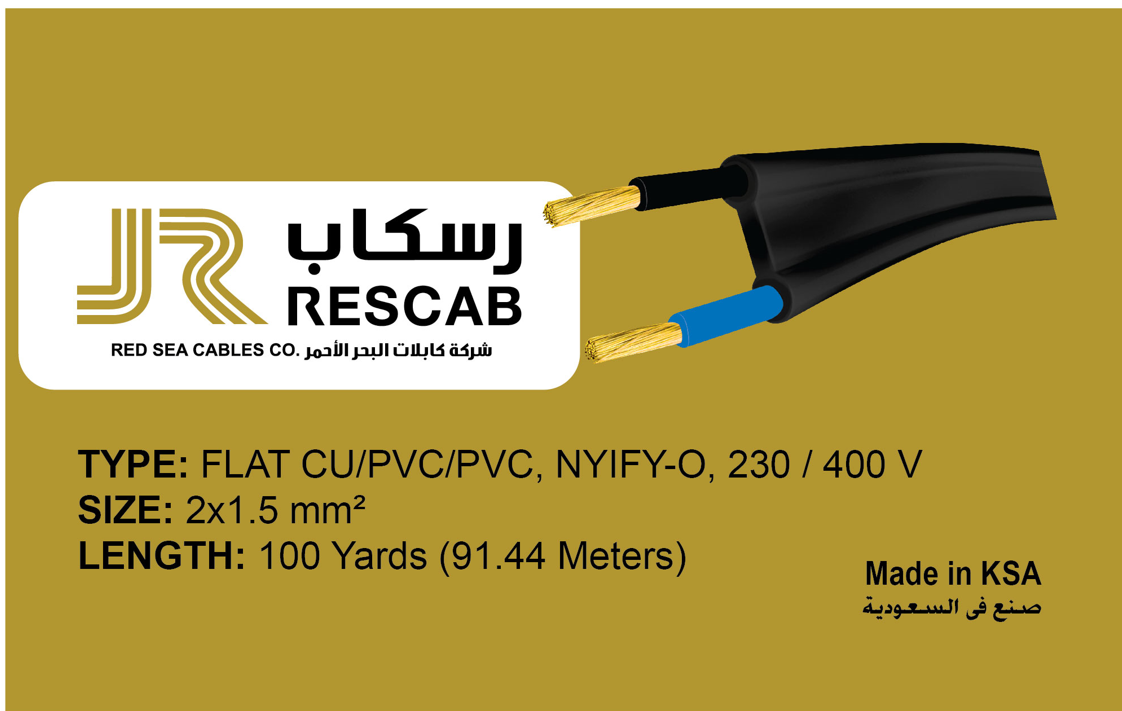

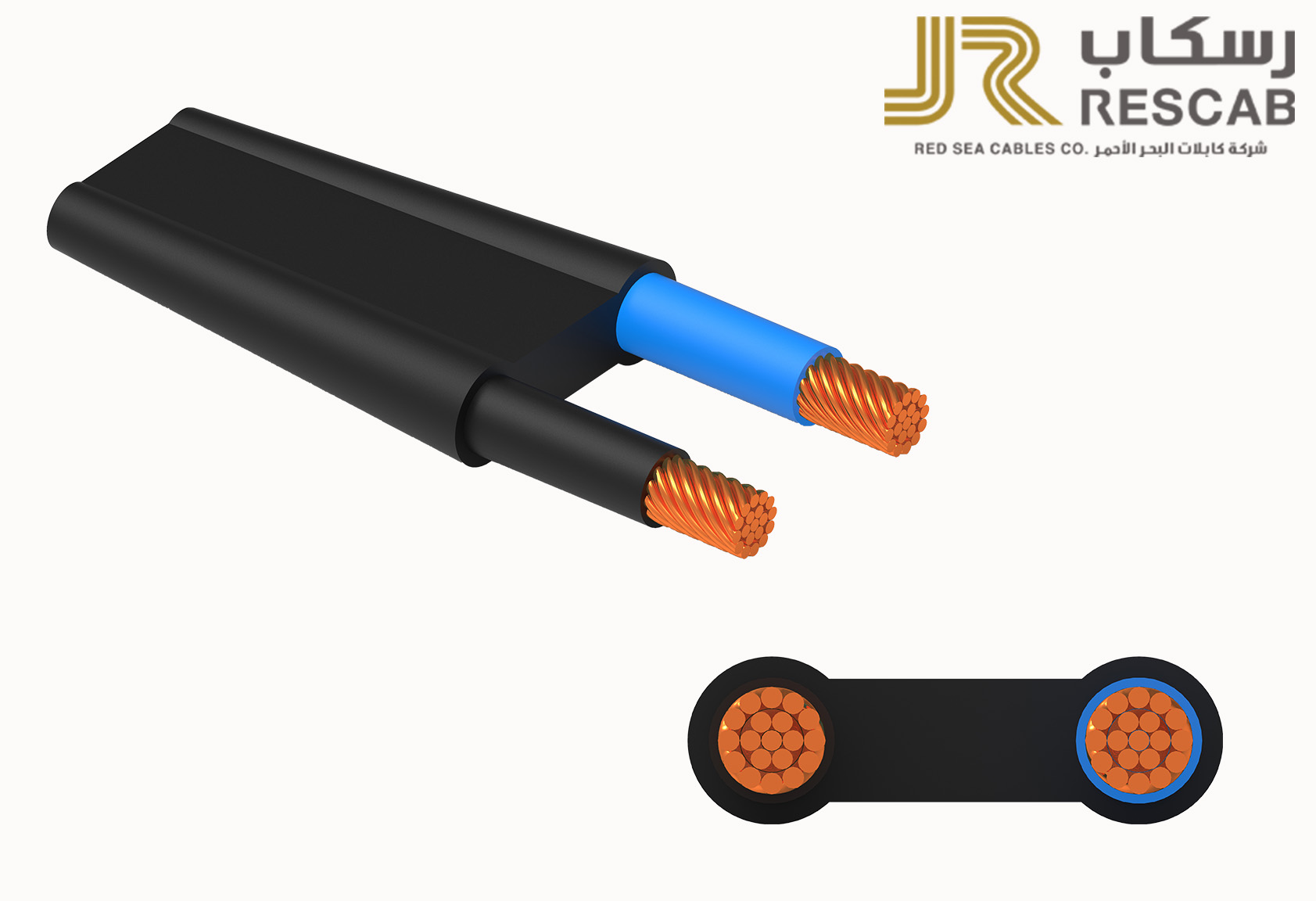

CU/PVC/PVC Cables NYIFY

Product Code : SC-01

Description

Red Sea Cables Company enjoys a track record in Flat Building Wires with thermoplastic PVC insulation and thermoplastic PVC Sheathing for general purpose applications such as for supplying power and lighting in residential and commercial buildings, etc.

Technical Specifications:

CU/PVC/PVC Sheathed Flat Building Wires 230/400 Volts according to DIN VDE0250-201.

Conductor:

Soft annealed copper according to BS EN 60228, Class 2 or Class 1 stranded, Solid conductor with Conductivity > 100 % IACS.

Insulation:

Thermoplastic Polyvinyl chloride (PVC- TI 1) Insulation rated temperature 70 oC.

Core Identification:

Outer Sheath:

Thermoplastic Polyvinyl chloride (PVC-TM 1) Sheath, color White or Black or as per customer Requirement.

Applications:

Installation on or Under plaster, in dry locations, indoors, used for supply networks with light mechanical stress.
Suitable to nail with its PVC bridge between cores.

Packing:

Product Code	Nominal cross Section Area (mm2)	Insulation Thickness (mm)	Sheathing Thickness (mm)	Max. Overall Dimension (mm)	Max. Resistance at 20C (Ohm/Km)	Current Rating (Amp.)
FNP04R2FVU2	2x1.5	0.4	0.8	4.4 x 12	12.1	16
FNP05R2FVU2	2x2.5	0.5	0.9	5.2 x 13.5	7.41	21
FNP06R2FVU2	2x4	0.6	0.9	6 x 15.5	4.61	27
FNP04R3FVU2	3x1.5	0.4	0.8	4.4 x 19	12.1	16
FNP05R3FVU2	3x2.5	0.5	0.9	5.2 x 21.5	7.41	21
FNP05R3FVU2	3x4	0.6	0.9	6 x 25	4.61	27

*The above data is approximate and subjected to manufacturing tolerance

** Ambient temperature 30c.

***Conductor operation temperature 70c.
