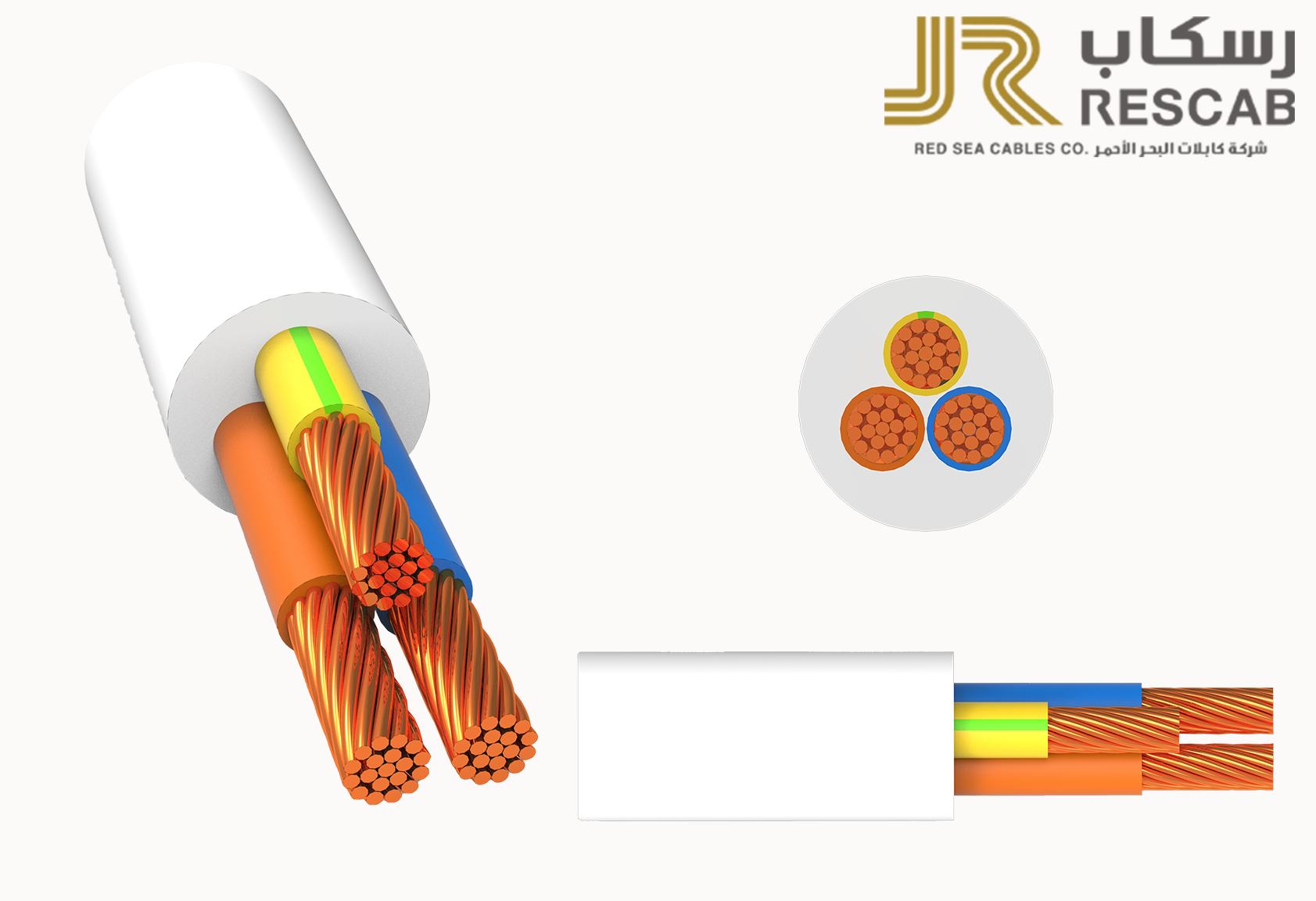

FLEXIBLE MULTI CORE CABLES

Product Code : FMCC-01

Description

Red Sea Cables Company enjoys a track record in wires with thermoplastic PVC insulation for general purpose applications such as for supplying power and lighting in residential and commercial buildings.

They are intended for use in the indoor fixed installation, distribution in conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus

Technical Specifications:

Flexible CU/PVC/PVC Sheathed - Multi Core cables - 300/500 Volts according to IEC 60227.

Conductor:

Soft annealed copper according to BS EN 60228, Class 5 Flexible conductor with Conductivity 100 % IACS.

Insulation:

Thermoplastic Polyvinyl chloride (PVC - TI 3) Insulation rated temperature up to 90oC. The Special HEAT RESISTANT PVC is in accordance with IEC 60227 and BS EN 50363-3. TYPE TI 1 (70 oC) is also available. All these Cables Are Fire Retardant to IEC 60332-1

Core Identification:

2- cores Blue and Brown
3- cores Green/yellow, Blue and Brown
4- cores Green/yellow, Blue, Brown and Black or Green/Yellow, Brown, Black and Grey

Core Assembly:

Insulated cores are Twisted together to give a practically circular cross-section.

Outer Sheath:

Thermoplastic Polyvinyl chloride (PVC) Sheath rated temperature 90 oC, color White or as per customer Requirement.

Packing:

Special Packing in Coils of 100 Yards or Wooden Drums as per Customer requirements.
