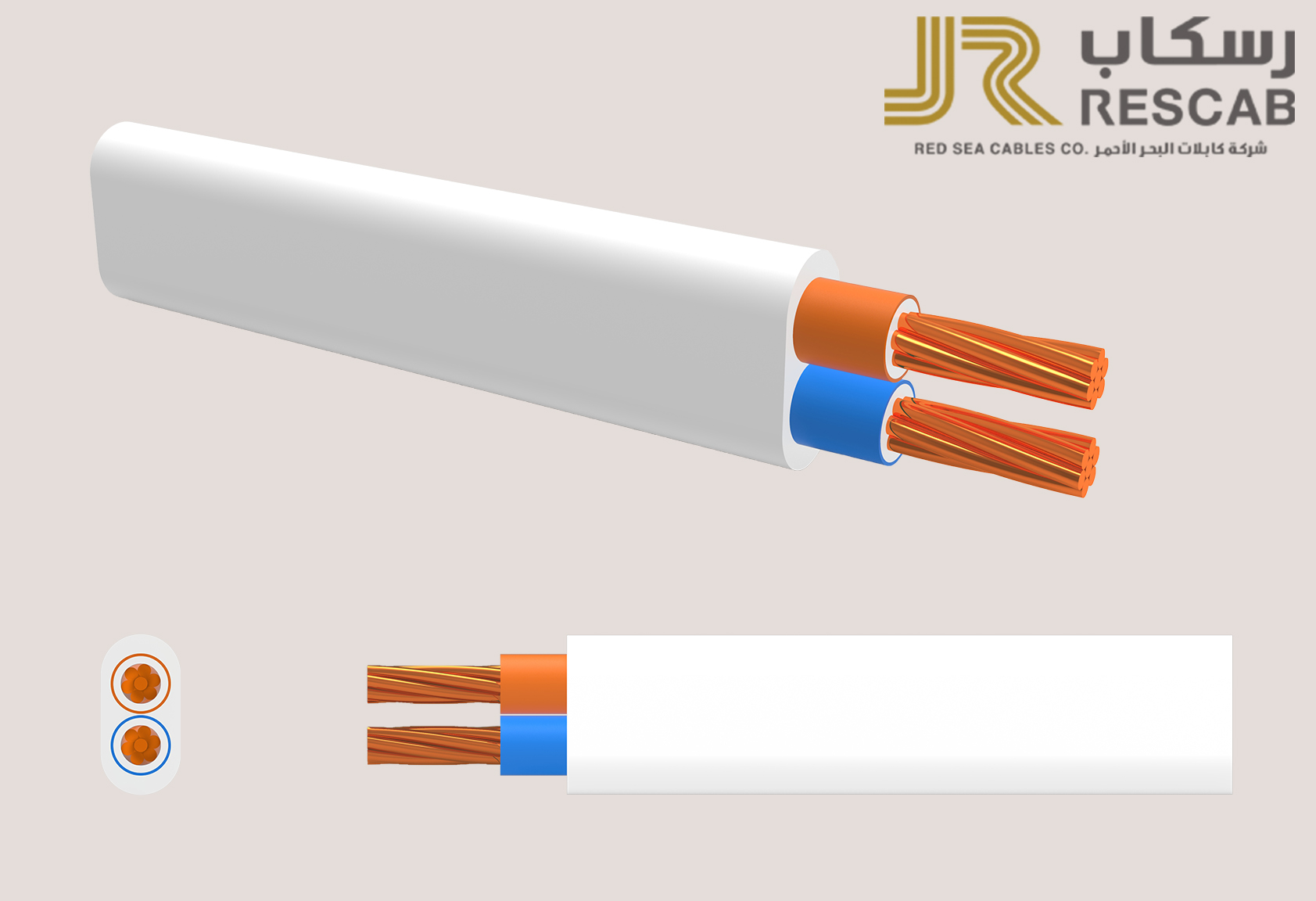

FLAT CABLES

Product Code : FC-01

Description

Red Sea Cables Company enjoys a track record in wires with thermoplastic PVC insulation for general purpose applications such as for supplying power and lighting in residential and commercial buildings.

They are intended for use in the indoor fixed installation, distribution in conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus

Technical Specifications:

CU/PVC/PVC Sheathed Single core, Flat twin and Three Core Cables 300/500 Volts according to BS EN 6004.

Conductor:

Soft annealed copper according to BS EN 60228, Class 2 stranded conductor with Conductivity 100 % IACS.

Insulation:

Thermoplastic Polyvinyl chloride (PVC- TI 1) Insulation rated temperature 70 oC in accordance with BS EN 50363-3. All these Cables are Fire Retardant to IEC 60332-1

Core Identification:

1- core Brown or Blue
2- cores Brown and Blue
3- cores Brown, Black and Grey

Formation:

Insulated cores are Laid Parallel for twin core and three core Flat Cables.

Outer Sheath:

Thermoplastic Polyvinyl chloride (PVC - Type 6) Sheath rated temperature 70 oC, color Grey or as per customer Requirement.

Packing:

Special Packing in Coils of 100 Yards or Wooden Drums as per Customer requirements.
